Theme-aware Mermaid Diagrams at build-time

I mentioned a satteriMermaid plugin in my note on Upgrading to Astro 7 and switching to Sätteri and wanna expand on that briefly because this site now supports themed mermaid diagrams!

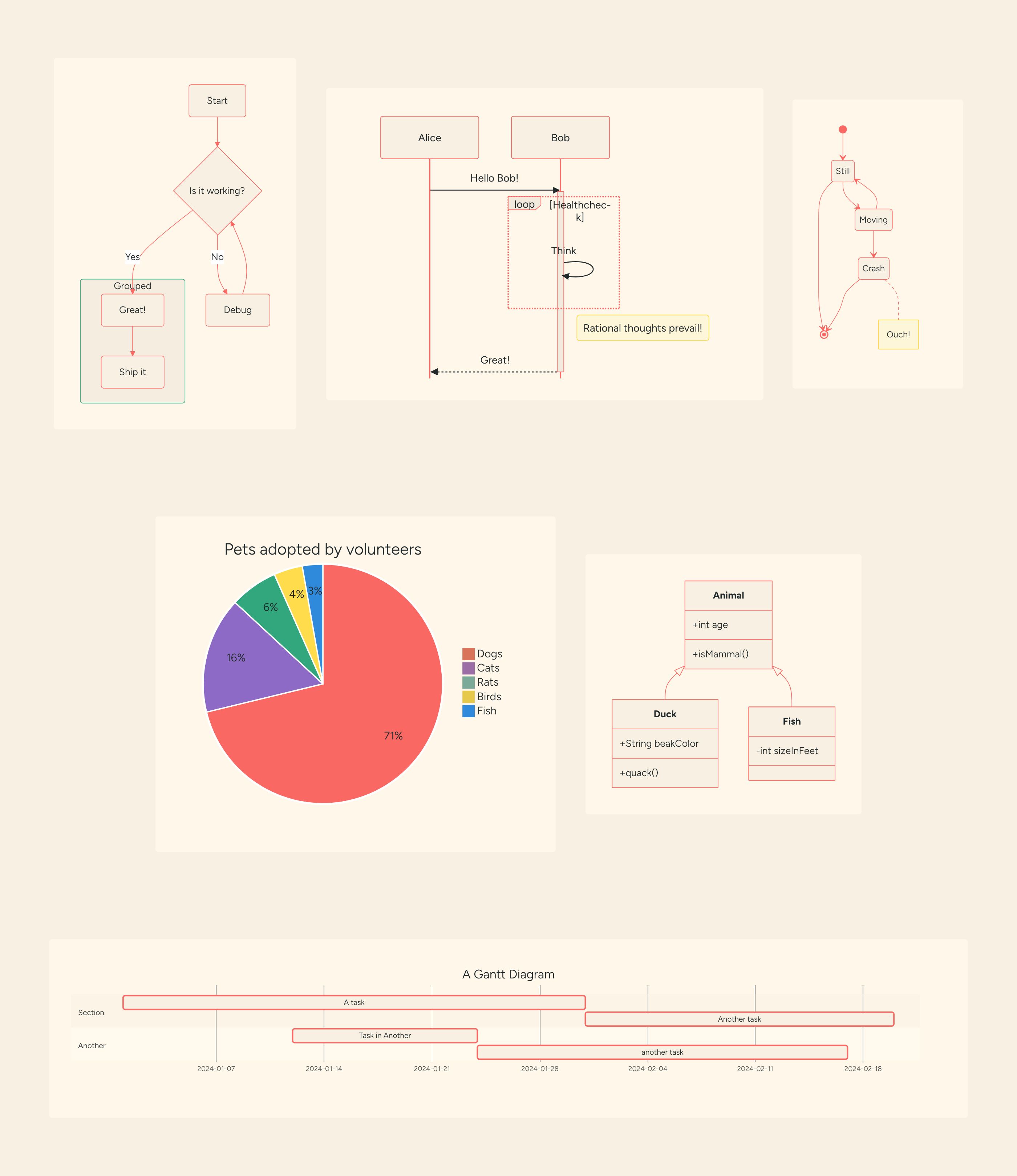

Six example Mermaid diagrams – a flowchart, sequence diagram, state diagram, pie chart, class diagram and Gantt chart – rendered in this site’s light theme — Example mermaid diagrams in light mode

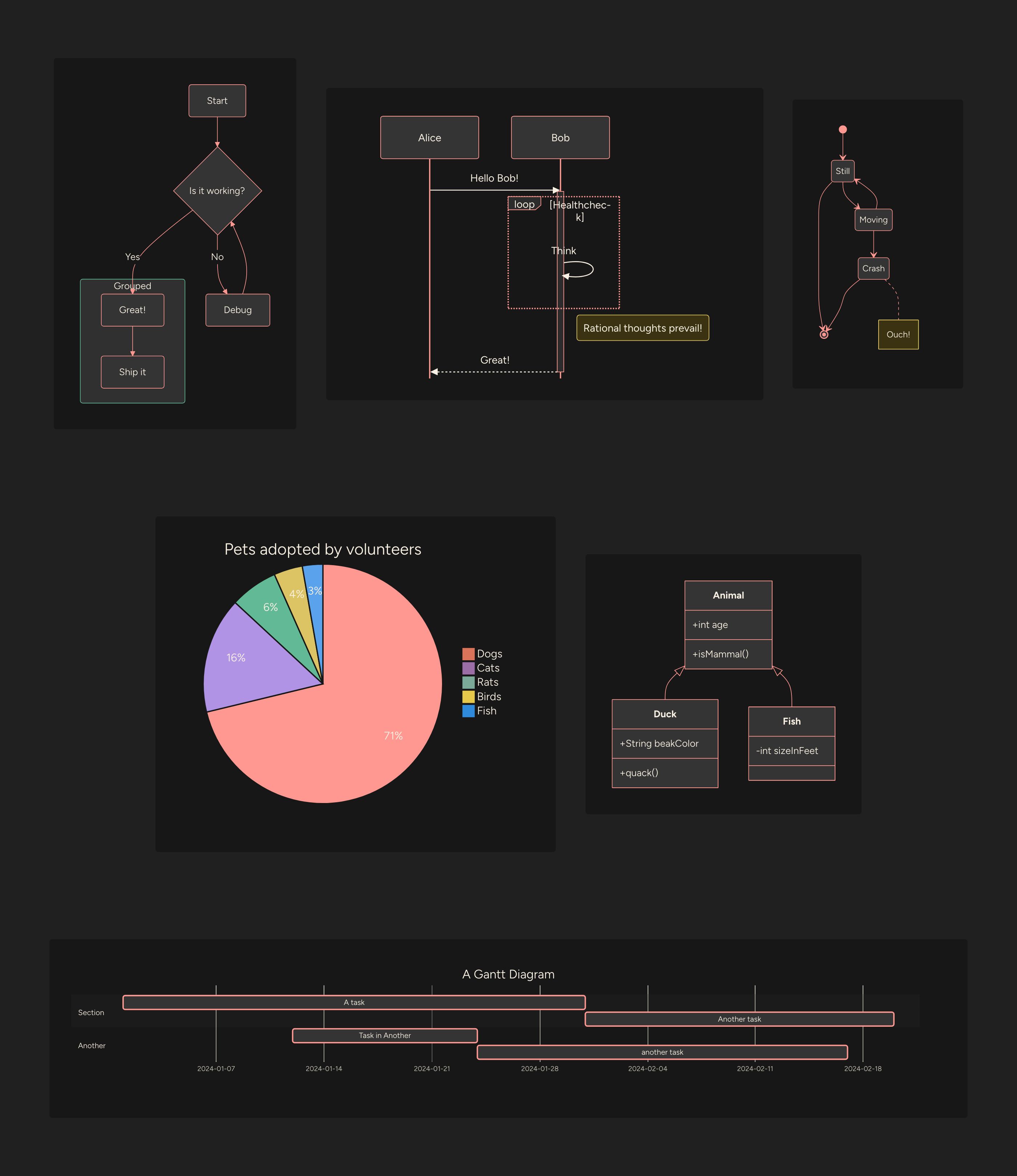

The same six Mermaid diagrams rendered in this site’s dark theme — Example mermaid diagrams in dark mode

Mermaid is a way to describe diagrams in plain text and have them rendered nicely. Inside markdown files the mermaid code is usually written inside a fenced code block like this.

```mermaid
graph TD
    A[Start] --> B{Is it working?}
    B -->|Yes| C[Great!]
    B -->|No| D[Debug]
    D --> B
```

Which is rendered like this.

In statically-generated sites we’ve a few options for handling mermaid code: we can render them using a client-side JS library, we can generate raster images at build-time, or we can generate SVGs at build time and embed them in our HTML. My preference is for the last, which is easy enough using one of the many mermaid libraries.

I first added support for this ages ago but didn’t really give it much thought and only supported one colour scheme.

Mermaid theme variables are configured in mermaid.js like this:

export const mermaidConfig = {
  theme: 'base',
  themeVariables: {
    primaryColor: '#d9745b',
    primaryTextColor: '#1a1d20',
    primaryBorderColor: '#d9745b',
  }
}

Whereas this site’s theming relies on global CSS variables which are already theme-aware. Anything using --color-coral just works when the theme changes because:

--color-coral: light-dark(#fa6863, #ff9890);

But we can’t use CSS variables in mermaid.js, hence the need for that satteriMermaid plugin I mentioned. It uses mermaid-isomorphic to build the SVGs using the hex colours defined in mermaid.js and then rewrites the syntax tree to replace them with CSS variables.

The --mermaid-* CSS variables are defined in _mermaid.css and map one-to-one onto the colour variables defined in mermaid.js except the CSS colours are defined using light-dark() like this:

/* ... */
--mermaid-text: var(--color-text);
--mermaid-background: light-dark(var(--color-white), var(--color-background-secondary));
--mermaid-label-background: oklch(from var(--color-background-secondary) l c h / 60%);
--mermaid-coral: var(--color-coral);
--mermaid-purple: var(--color-purple);
--mermaid-green: var(--color-green);
--mermaid-note-background: light-dark(
  oklch(97% 0.04 var(--hue-yellow)),
  oklch(32% 0.05 var(--hue-yellow))
);
/* ... */

The end result is that mermaid code blocks in my markdown & MDX files are transformed into inline SVGs in the generated HTML and respond to theme changes because they use theme-aware CSS variables.
